Plastic Random Packing

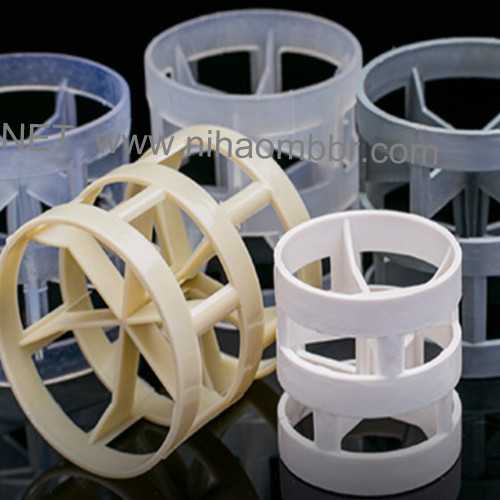

Plastic Pall Ring

Product Name:Plastic Pall Ring
Brand : Nihao
Life Span:3 years
material: PP/RPP/PVC/CPVC/PVDF/PTFE,etc
Description: Plastic Random Packing china Tube Settler Systems for Clarification, tube settlers, MBBR, biofilter ,MBR fiber follow membrane, disc diffusers and other plastic material for water treatment. NET's s
INQUIRY EMAIL

Plastic Pall Ring

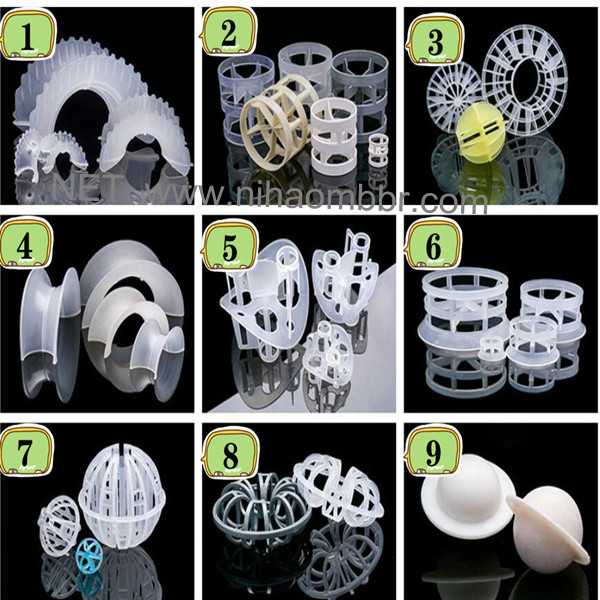

All kinds of Random Packings ,including Ball Ring Packing ,Cascade mini Ring, Super Intalox saddle and all kinds plasitc Random Packing.And we also produce it as the drawing from Customers.

Product Name					Plastic Pall Ring
Material					PP/RPP/PVC/CPVC/PVDF/PTFE,etc
Life Span					>3 years
item Number	Size		Surface Area	Void Volume	Packing Number	Packing Density	Dry Packing Factor
item Number	Inch	mm	m2/m3	%	pieces/ m3	Kg/m3	m-1
PPR06	3/5”	16161	188	91	170000	85	275
PPR10	1”	25251.2	175	90	53500	69	239
PPR15	1-1/2”	38381.4	115	89	15800	69	220
PPR20	2”	50501.5	93	90	6500	52	127
PPR30	3”	76762.6	73.2	92	1927	48	94
PPR40	4”	1001003	52.8	94	1000	48	82

Feature

High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.

Advantage

1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability.

2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload.

Application

These various plastic tower packing are widely used in petroleum and chemical,alkali chloride,gas and environmental protection industries with max. temperature of 280°.
