Bubble Tube Diffuser

Brande: Nihao
Diameter: 115mm
Length: 500mm,750mm,1000mm
material: EPDM, Silicon or customized
Description: Tube diffuser water treatment china, tube settlers, MBBR, biofilter ,MBR fiber follow membrane, disc diffusers and other plastic material for water treatment. NET's supplier with 16 years focus on
INQUIRY EMAIL

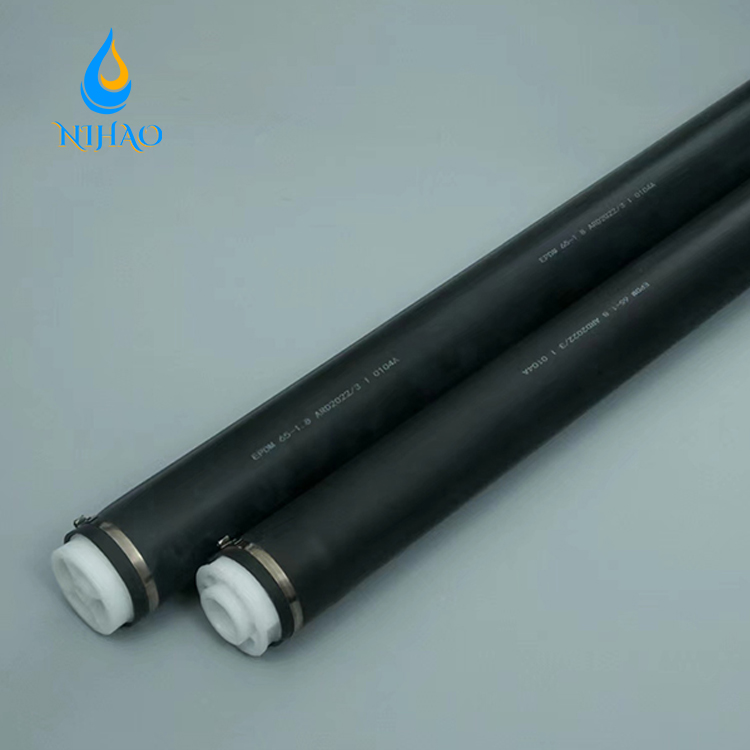

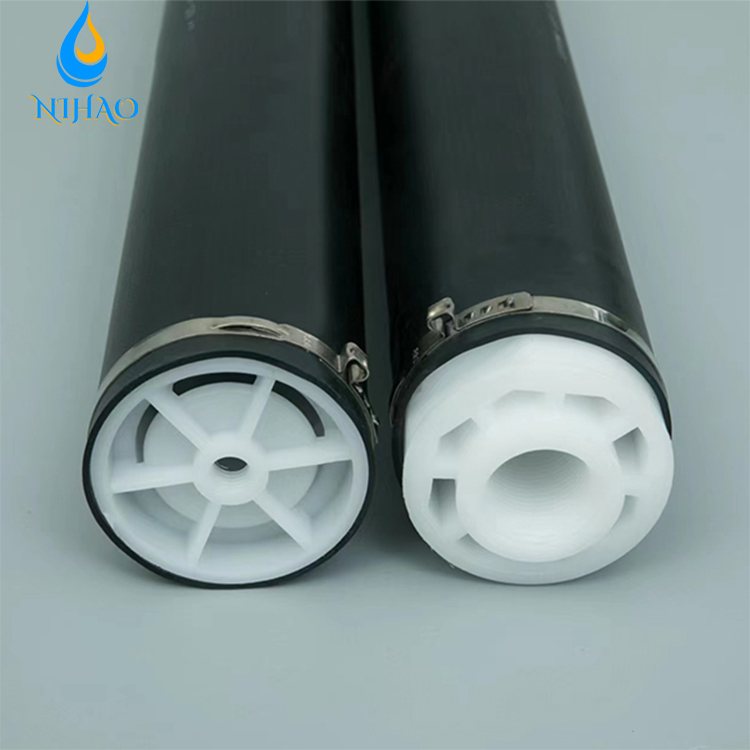

Tube Fine Bubble Diffusers

The Tube Fine Bubble Diffusers increase the oxygen transfer efficiency while decreasing the power consumption to provide the same quality of effluent water. The diffusers can be used to create zones with high oxygen concentrations (anoxic or aerobic), minimal oxygen

concentration (anoxic), and no oxygen (anaerobic), offering plant operator a great deal of

operational flexibility.

Features:

1.reduces installation time.

2.Any diffuser length is available to suit the needs of each application.

3.Attachment system eliminates structural concerns of many other tube diffuser designs.

Suitable for off/on applications.

4.Diffusers are factory assembled for easy installation.

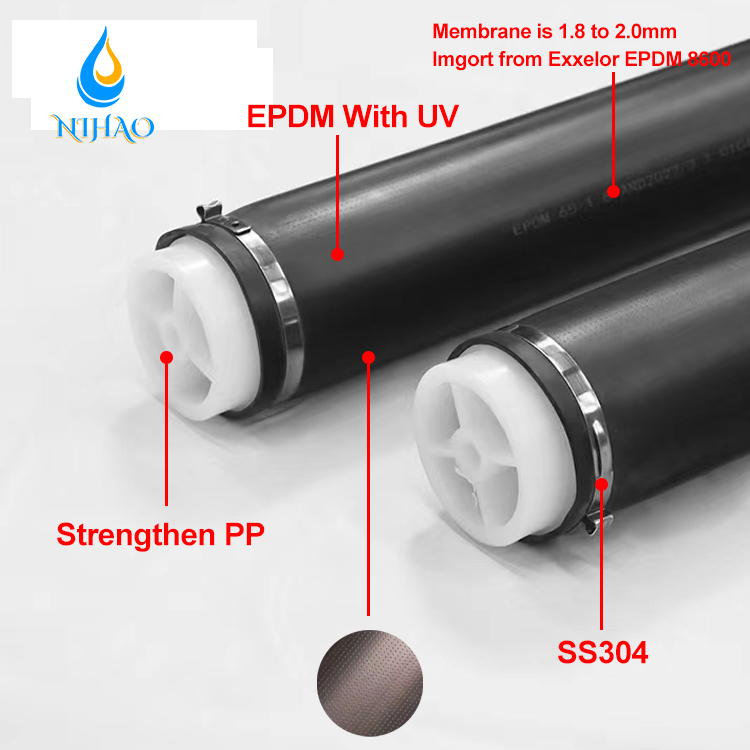

5. Available membrane material: EPDM, Silicon or customized

Technical Specification
item number	TD65	TD95	TD115
material	EPDM/Silicon membrane ABS tube	EPDM/Silicon membrane ABS tube	EPDM/Silicon membrane ABS tube
Length	500/750/1000mm	500/750/1000mm	500/750/1000mm
Connector	3/4NPT	3/4NPT	3/4NPT
Flow range(m³/h)	2--14	5--20	6--28
Bubble Size(mm)	1--2	1--2	1--2
Service Area(m²⁾	0.75-2.5	1.0-3.0	1.5-2.5
Service Life	>5year	>5year	>5year
