Plastic Random Packing

  • Cascade mini Ring
  • Cascade mini Ring
  • Cascade mini Ring
Cascade mini RingCascade mini RingCascade mini Ring

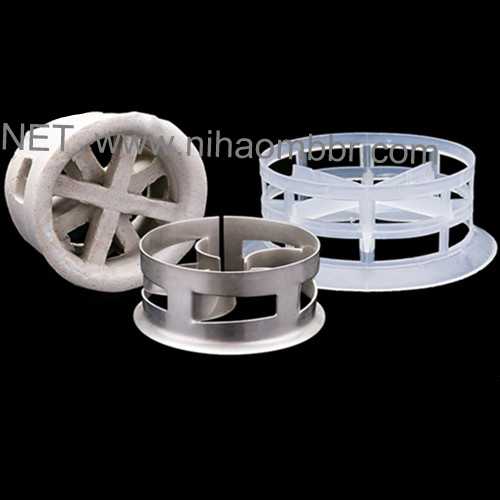

Cascade mini Ring

  • Product Name:Cascade mini Ring
  • Brand : Nihao
  • Life Span:3 years
  • material: PP/RPP/PVC/CPVC/PVDF/PTFE,etc
  • Description: Cascade mini Ring Plastic Random Packing china Tube Settler Systems for Clarification, tube settlers, MBBR, biofilter ,MBR fiber follow membrane, disc diffusers and other plastic material for water
  • INQUIRY   EMAIL

Plastic Pall Ring

All kinds of Random Packings ,including Ball Ring Packing ,Cascade mini Ring, Super Intalox saddle  and all kinds plasitc Random Packing.And we also produce it as the drawing from Customers.

Product Name
Cascade Mini Ring
Material
PP/RPP/PVC/CPVC/PVDF/PTFE,etc
Life Span
>3 years
item Number
Size
Surface Area
Void Volume
Packing Number
Packing Density
Dry Packing Factor
Inch
mm
m2/m3
%
pieces/ m3
Kg/m3
m-1
PPR06
3/5”
16*16*1
188
91
170000
85
275
PPR10
1”
25*25*1.2
175
90
53500
69
239
PPR15
1-1/2”
38*38*1.4
115
89
15800
69
220
PPR20
2”
50*50*1.5
93
90
6500
52
127
PPR30
3”
76*76*2.6
73.2
92
1927
48
94
PPR40
4”
100*100*3
52.8
94
1000
48
82


Feature

High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.

Advantage

1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability.

2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload.

Application

These various plastic tower packing are widely used in petroleum and chemical,alkali chloride,gas and environmental protection industries with max. temperature of 280°.
